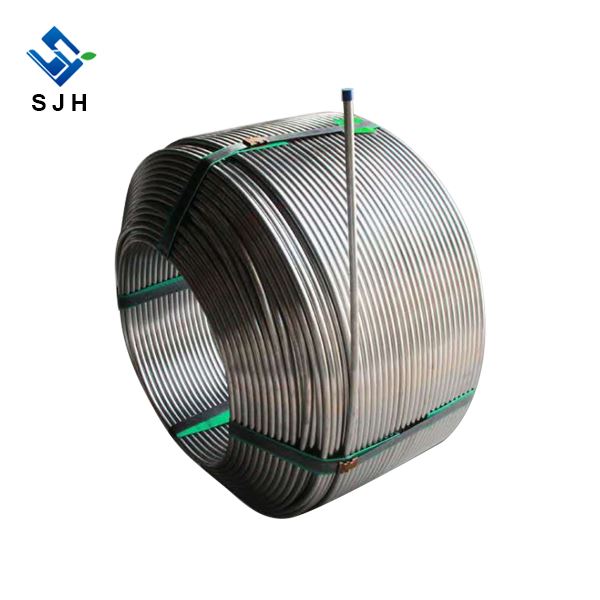

Capillary Coiled Tubing

Classification: stainless steel coil is divided into spiral coil, U-shaped pipe, serpentine pipe, etc
Advantages: it has high temperature steam resistance, impact corrosion resistance, anti scaling, not easy to stain, oxidation corrosion resistance, etc.
Specification: Generally 8 to 25mm in diameter, 0.6 to 2.0mm in thickness of the plate or mosquito coil coil bent pipe.
Application: chemical industry, machinery, electronics, electric power, textile, rubber, food, medical equipment, aviation, aerospace, communications, petroleum and other industrial fields.

Send Inquiry

Product Parameters

Parameter	Description
Product Name	Stainless Steel Capillary Coiled Tubing
Material Grades	304, 304L, 316, 316L, 321, 2205 Duplex Stainless Steel
Outer Diameter (OD)	0.8 mm – 25.4 mm (customizable)
Wall Thickness	0.1 mm – 2.0 mm
Coil Length	Up to 1,500 meters per coil (depending on size and grade)
Manufacturing Process	Seamless or welded and redrawn process, cold-drawn precision forming
Surface Finish	Bright annealed, polished, or custom finish
Tensile Strength	≥ 520 MPa (typical for 316L)
Yield Strength	≥ 210 MPa
Elongation	≥ 35 %
Operating Temperature	−200 °C to +600 °C (depending on material grade)
Standards Compliance	ASTM A269, ASTM A213, ASTM A632, EN10217, JIS G3459

product-1-1

Storage Conditions for Capillary Coiled Tubing

Storage Environment
Store in a clean, dry, and well-ventilated area away from corrosive gases and chemicals. Maintain ambient temperature and low humidity to prevent surface oxidation.

Temperature & Humidity Control
Recommended temperature: 5 °C – 35 °C; relative humidity below 70%. Sudden temperature changes should be avoided to prevent condensation.

Long-Term Storage
For extended storage periods, inspect the tubing periodically for signs of rust, oxidation, or deformation, and reapply protective oil or film as necessary.
